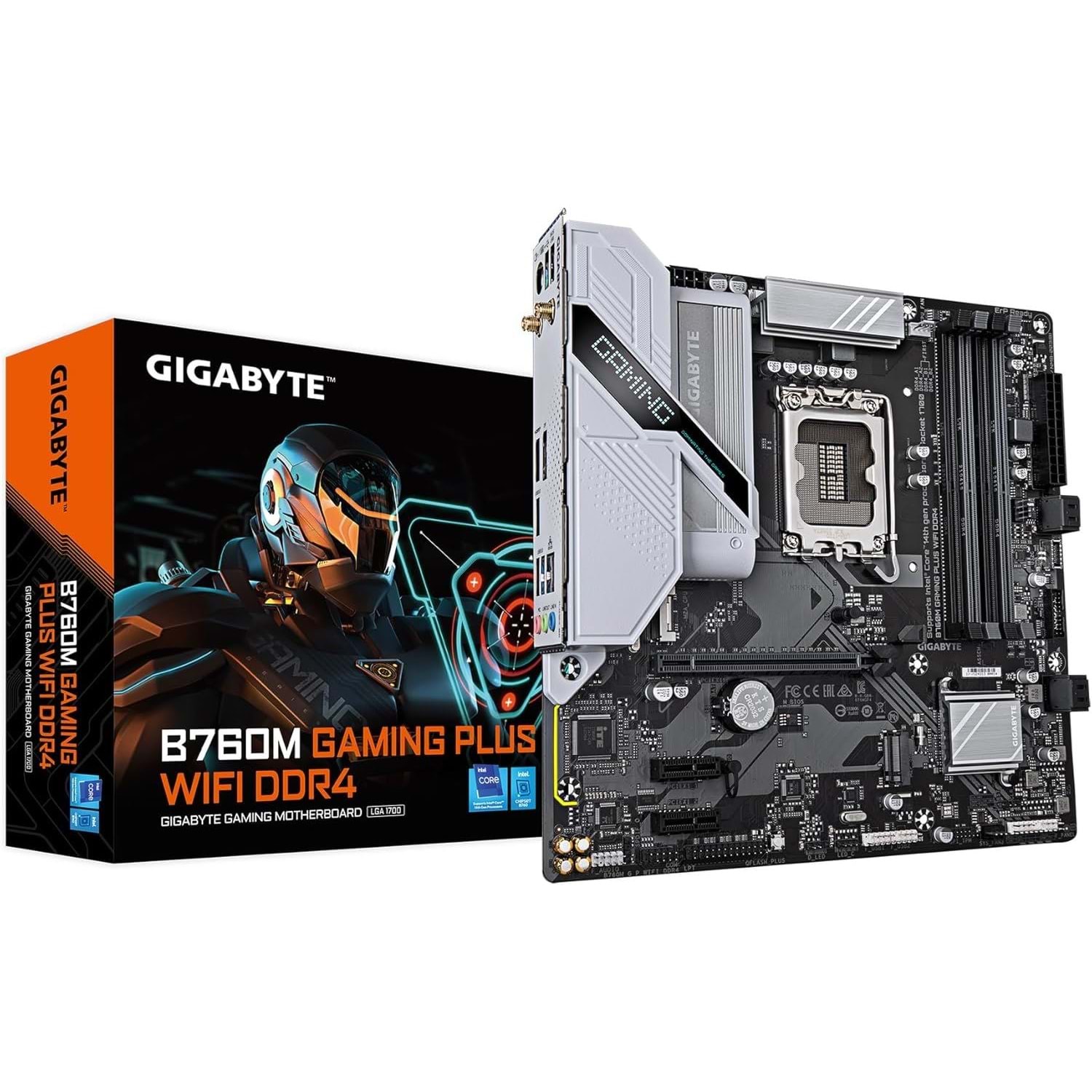

GIGABYTE GAMING PLUS B760M DDR4 HDMI DP PCIE 4.0 1700p mATX

Teknik Bilgiler

İşlemci Soket Tipi	1700
Chip Set	Intel B760
Ram Slot Sayısı	4 Adet
Max Ram Desteği	128GB
RAM Tipi	DDR4
Ram Frekans Hızı	3466 MHz,3600 MHz,3666 MHz,3733 MHz,3800 MHz,3866 MHz,4133 MHz,4266 MHz,4300 MHz,4400 MHz,4500 MHz,4600 MHz,4700 Mhz,4933 MHz,5000 MHz,5133 MHz,5333 MHz,4000 MHz,4800 MHz,2133 MHz,2400 MHz,2666 MHz,2800 MHz,2933 MHz,3000 MHz,3100 MHz,3200 MHz,3300 MHz,3333 MHz,3400 MHz
İşlemci Desteği	Intel Pentium,Intel Core i9,Intel Core i7,Intel Core i5,Intel Core i3,Intel Celeron
Anakart Boyutu	Micro ATX
USB 3.2	5 Adet
USB 3.1	Yok
USB 3.0	Yok
USB 2.0	8 Adet
eSata	Yok
Bluetooth	Yok
PCI Express 4.0 x16	1 Adet
PCI Express 3.0 x16	Yok
PCI Express 2.0 x16	Yok
PCI Express x16	Yok
PCI Express x1	1 Adet
PCI Slot	Yok
M.2 Slotu	3 Adet
Sata 6Gb/s	4 Adet
D-Sub	Var
DVI	Yok
HDMI	Var
DP (Display Port)	Var
Lan Hızı	2.5 Gbit/ 1 Gbit/100 Mbit
Lan Çıkış Sayısı	2 Adet
Wireless Bağlantı	Yok
Ses Chip Set	Realtek Audio CODEC
Ses Kanal Sayısı	7.1 Kanal
Görüş Açısı (Yatay / Dikey)	160/140
Satış Garanti Süresi (ay)	24
EAN	4719331862855

Detaylı Bilgiler

CPU	LGA1700 socket Supports 14th / 13th / 12th Gen Intel® Core™, Pentium® Gold, Celeron® L3 cache varies by CPU (Refer to CPU Support List)
Chipset	Intel® B760 Express Chipset
Memory	DDR4 5333(O.C.) ~ 2133 MT/s support 4× DIMM, up to 128GB Dual Channel ECC/Non-ECC UDIMM support (ECC runs in non-ECC mode) XMP support
Onboard Graphics	Intel® HD Graphics HDMI: 4096×2160@60Hz (HDMI 2.1, HDCP 2.3) DisplayPort: 4096×2304@60Hz (DP 1.2, HDCP 2.3) Triple-display support
Audio	Realtek® Audio CODEC HD Audio, 2/4/5.1/7.1-channel S/PDIF Out support
LAN	Realtek® GbE LAN (1Gbps)
Wireless	Realtek® Wi-Fi 6 RTL8851BE WiFi a/b/g/n/ac/ax (2.4/5GHz) Bluetooth® 5.3 11ax 160MHz support
Expansion Slots	CPU: - 1× PCIe x16 (PCIe 4.0 x16) Chipset: - 2× PCIe x1 (PCIe 3.0 x1)
Storage	CPU: - 1× M.2 (2280 PCIe 4.0 x4/x2) (M2A_CPU) Chipset: - 1× M.2 (2280 PCIe 4.0 x4/x2) (M2P_SB) - 4× SATA 6Gb/s RAID 0 / 1 / 5 / 10
USB	USB 3.2 Gen1: - 1× Type-C (internal) - 3× rear - 2× internal USB 2.0: - 2× rear - 4× internal (Hub)
Internal I/O	24-pin ATX 8-pin CPU 12V 1× CPU fan 3× system fan ARGB header RGB header 2× M.2 sockets 4× SATA 6Gb/s Front panel headers USB Type-C header (USB 3.2 Gen1) USB 3.2 Gen1 header 2× USB 2.0 headers TPM header Serial + Parallel header S/PDIF Out header Q-Flash Plus button Reset jumper / Clear CMOS jumper
Back Panel	2× USB 2.0 PS/2 combo port 2× SMA antenna connectors 1× DisplayPort 1× HDMI 3× USB 3.2 Gen1 1× RJ-45 LAN 3× audio jacks
I/O Controller	iTE® Controller Chip
H/W Monitoring	Voltage / Temperature / Fan speed detection Water flow detection Fan fail warning Fan speed control
BIOS	128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM) LAN Manager Software
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	Micro-ATX — 24.4cm × 24.4cm
