Product Overview
Huawei eKitEngine AP362E is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It provides
services simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands, delivering a data rate of up
to 2.975 Gbps.

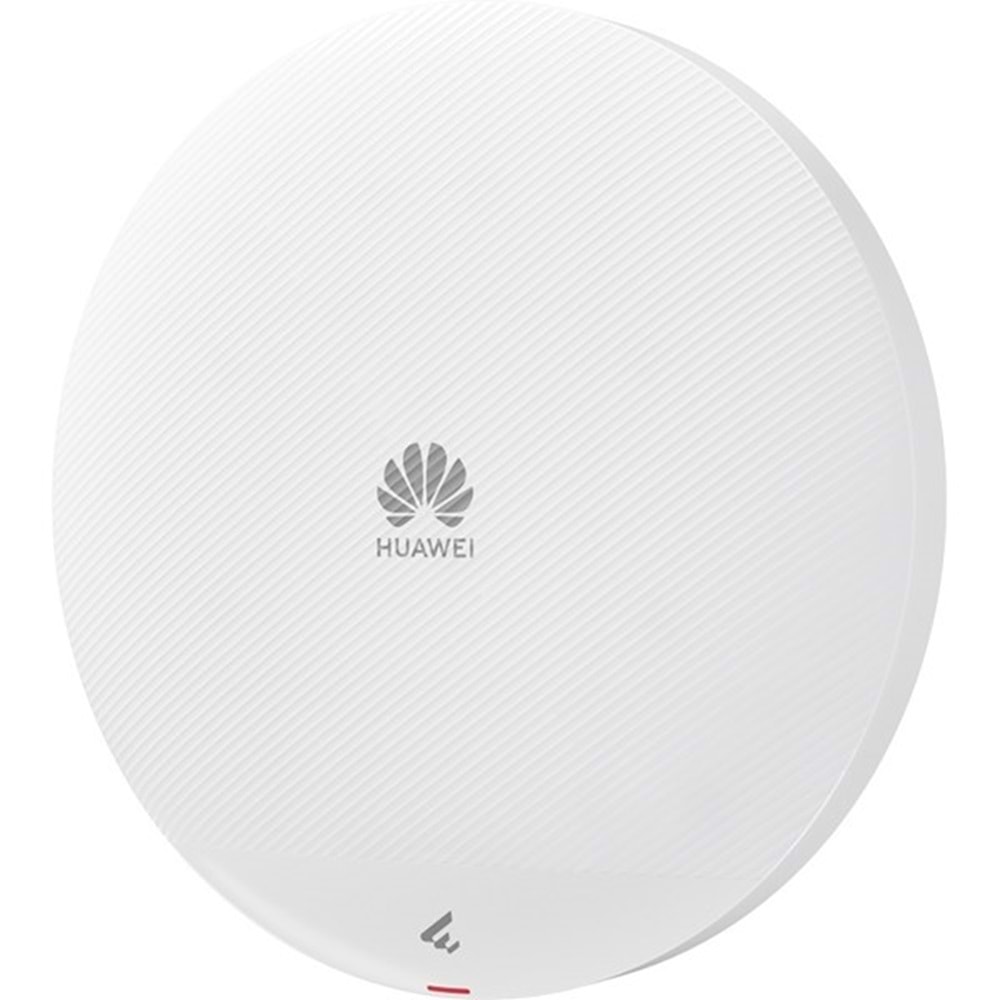

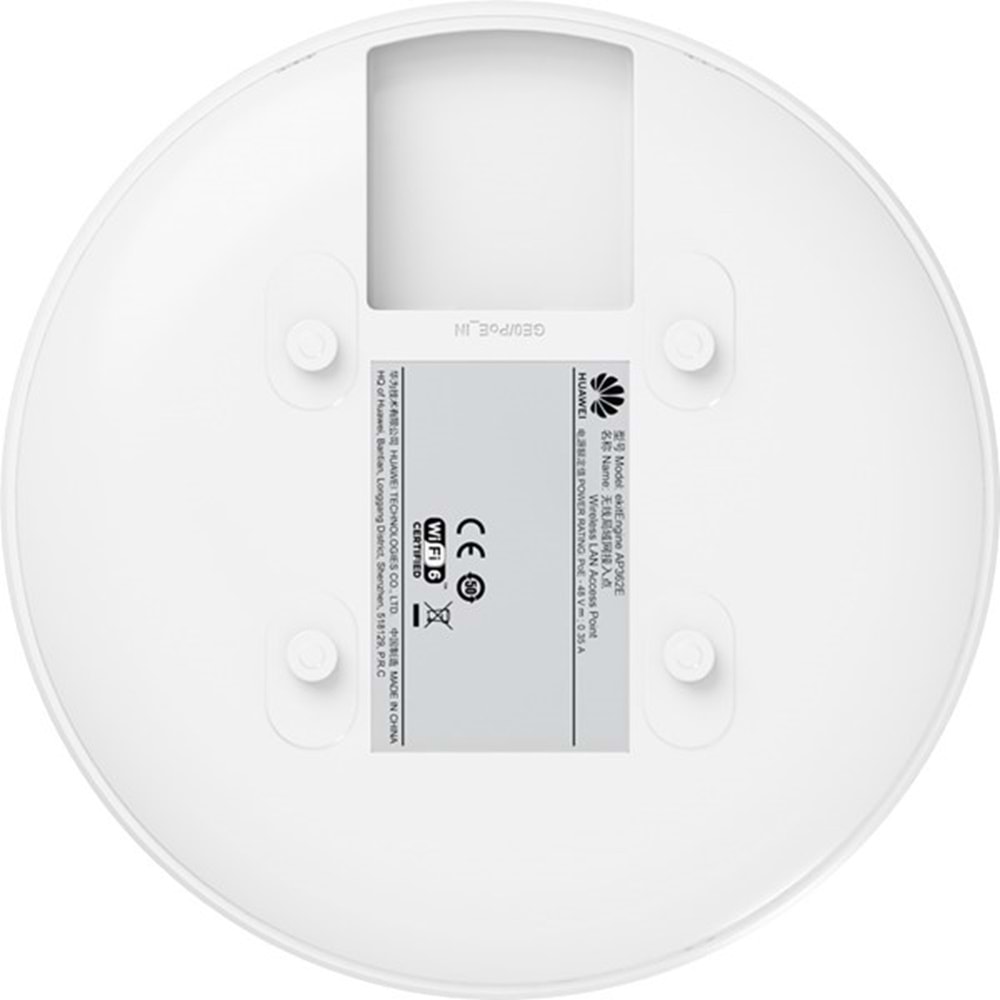

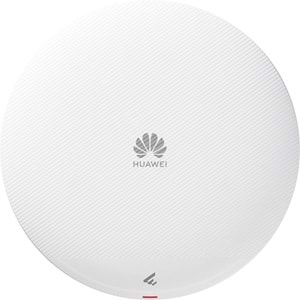

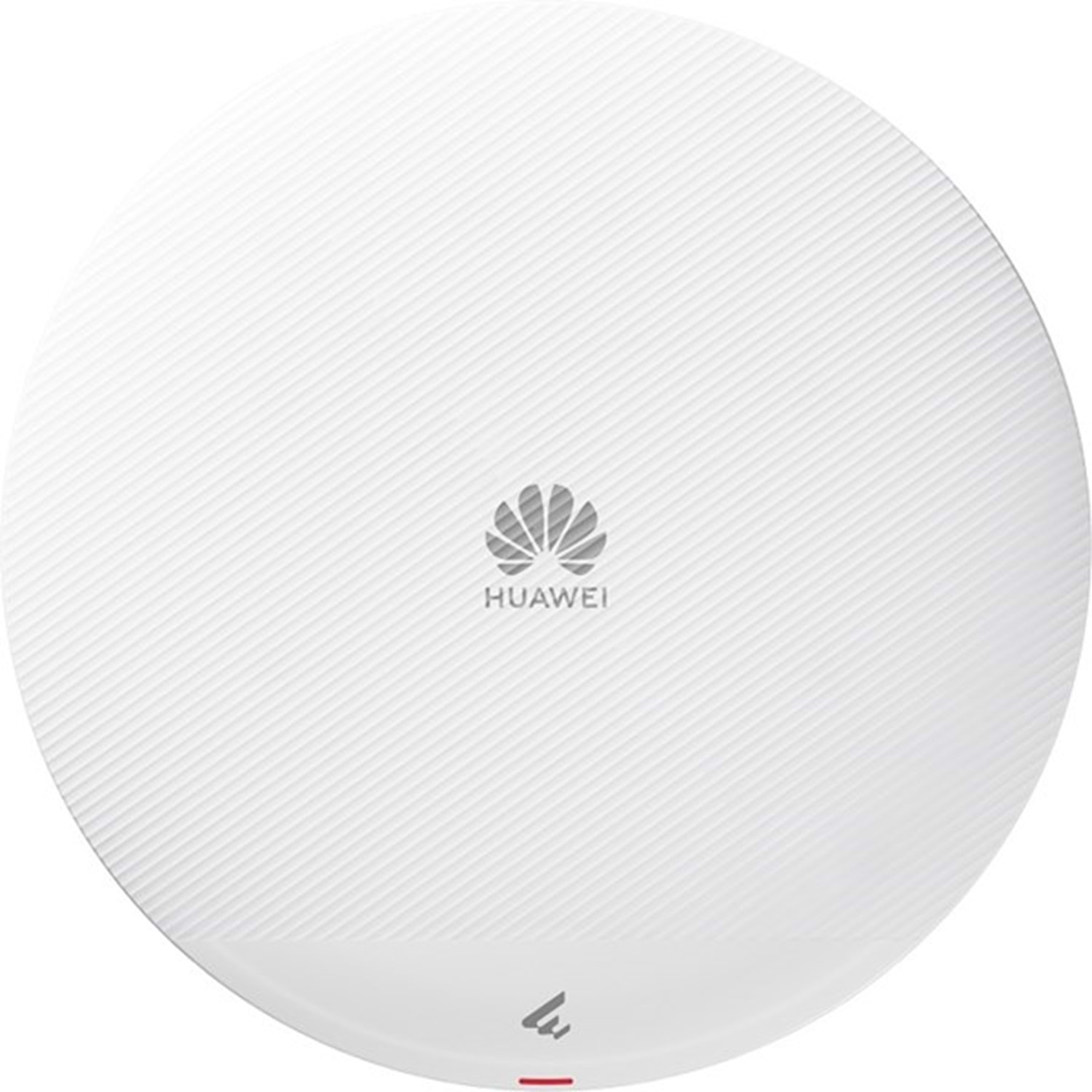

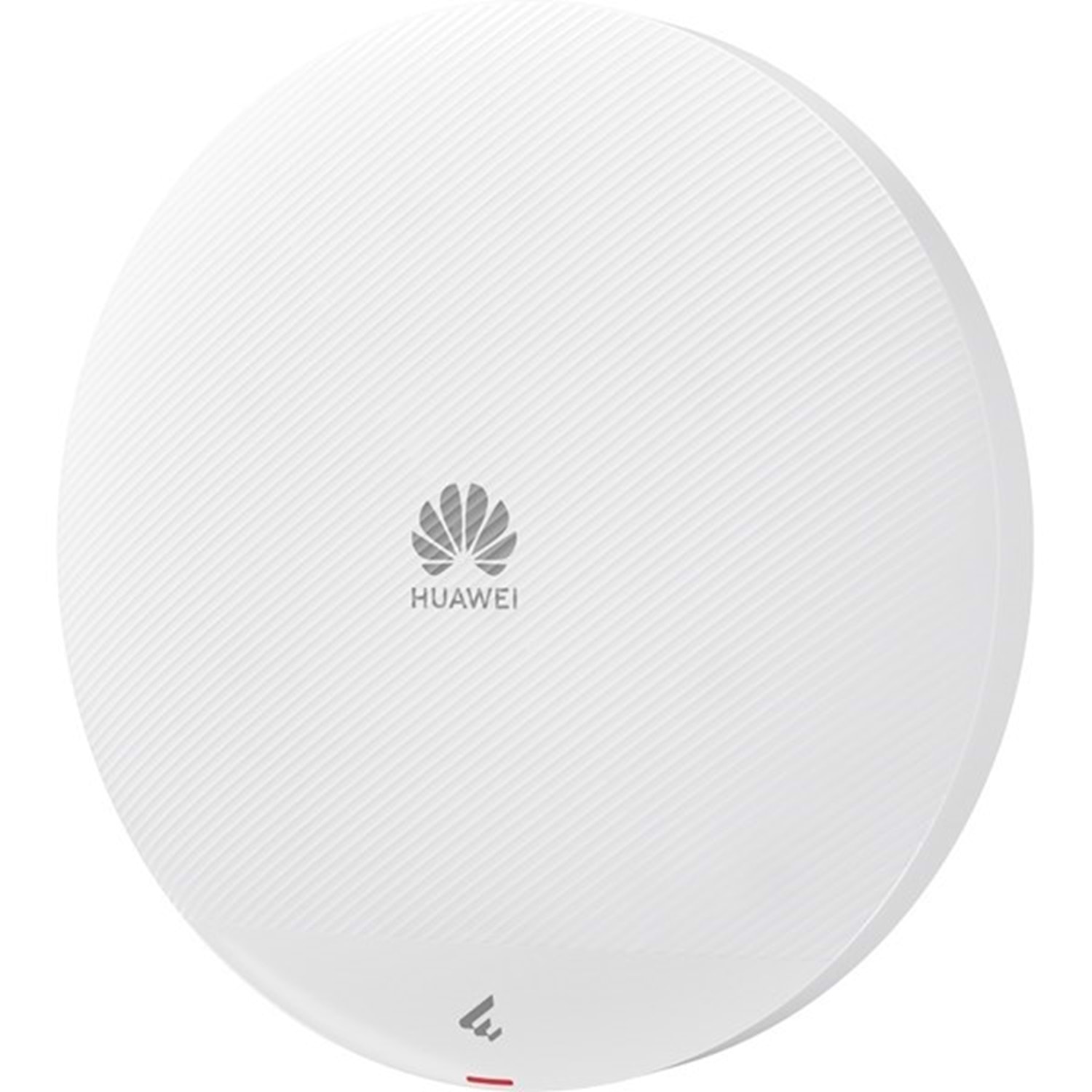

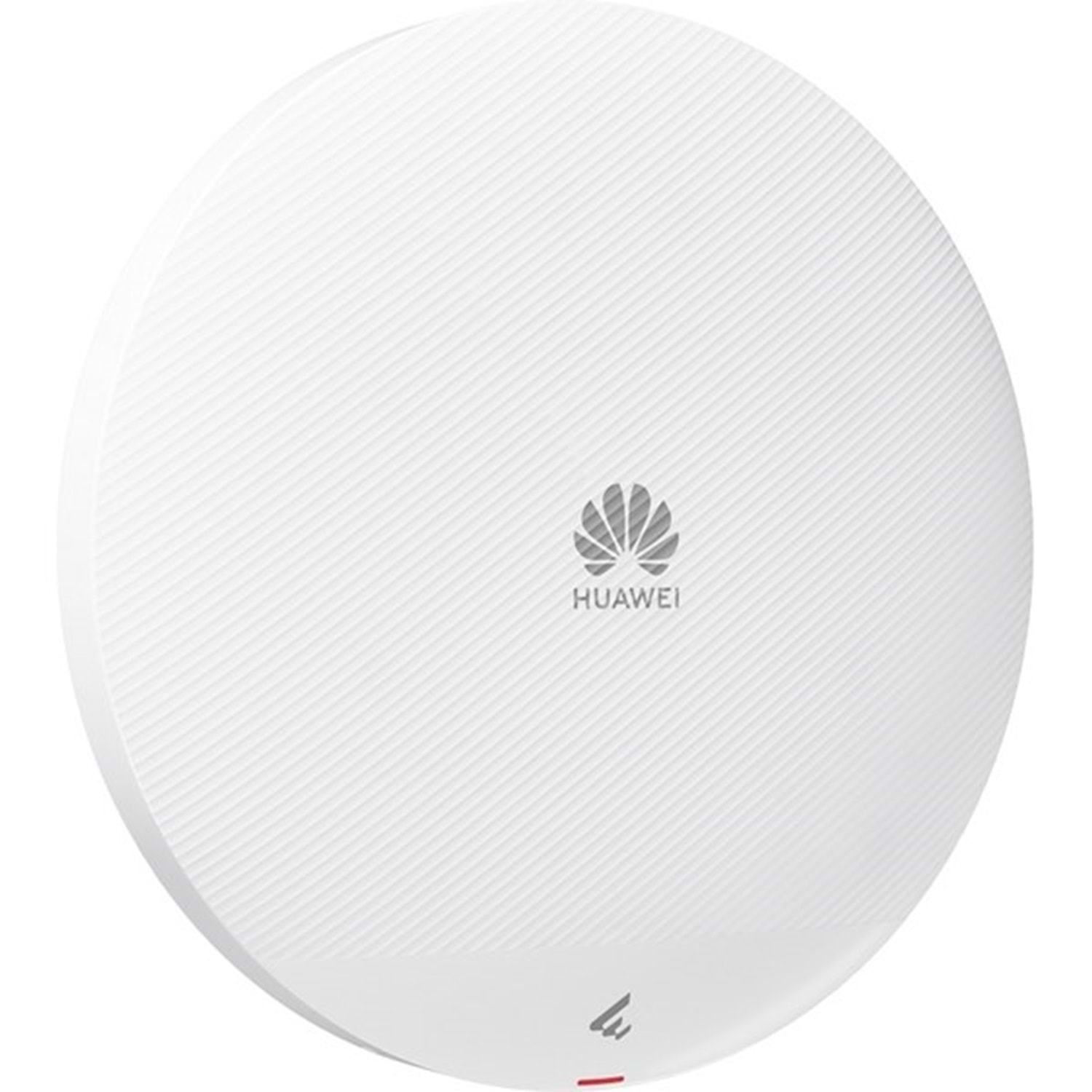

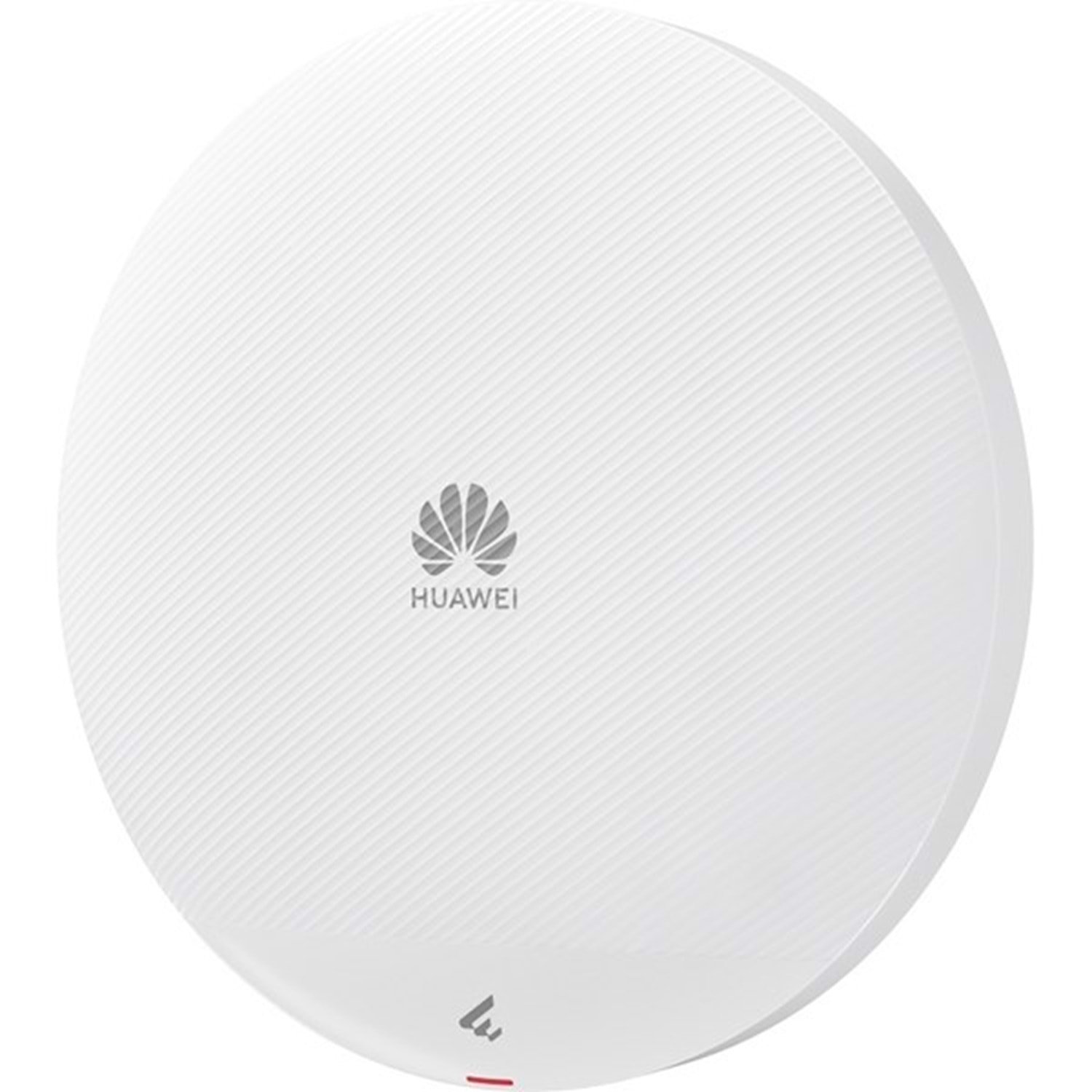

The product adopts a round design with a diameter of 180 mm, which is better blended with the decoration style. The AP

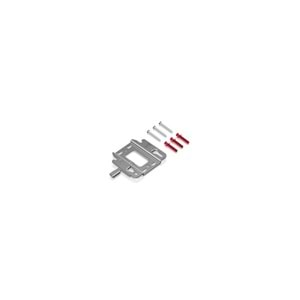

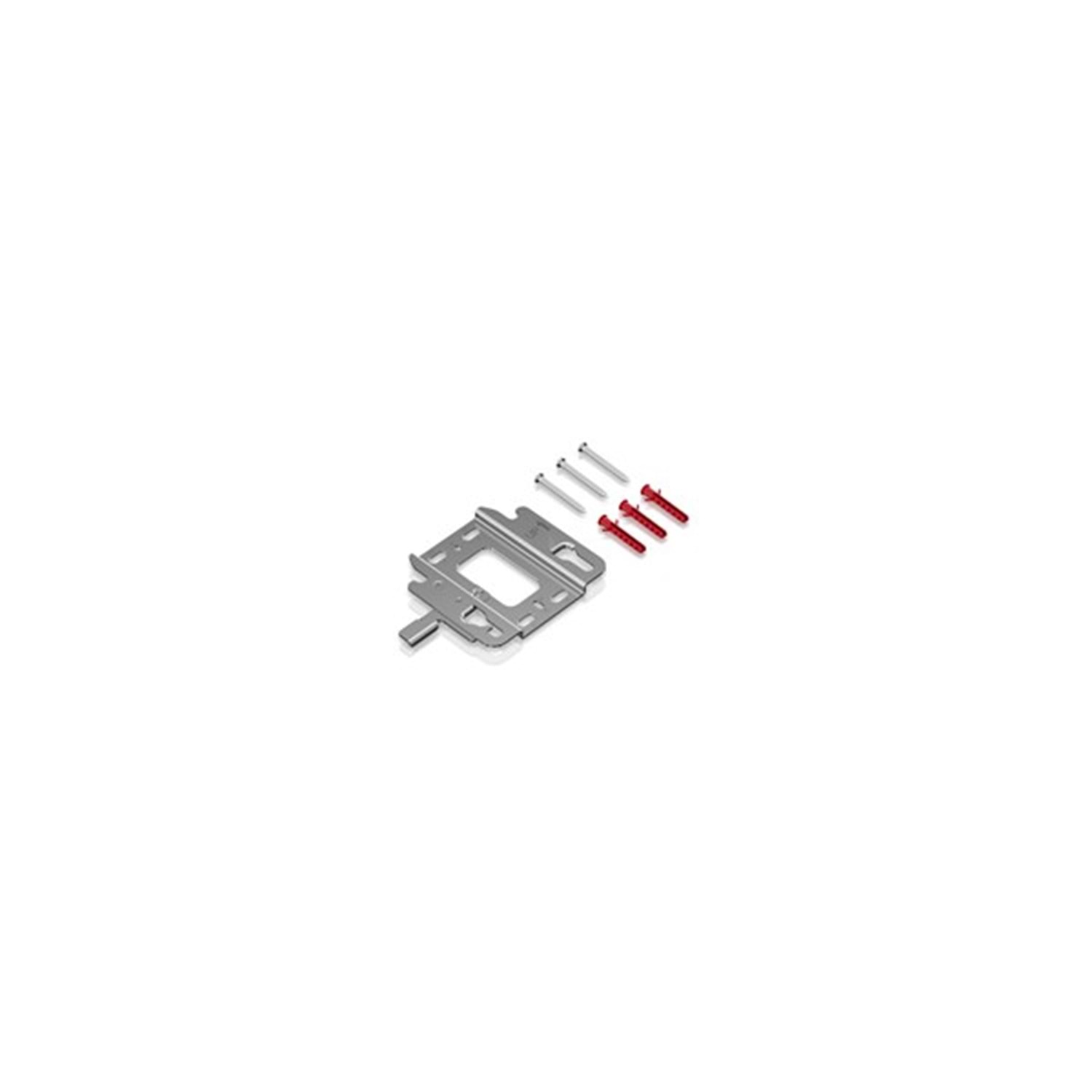

supports multiple installation modes, such as wall or ceiling mounting, with simple installation steps; metal mounting
brackets are durable and resistant to deformation. It is suitable for indoor coverage scenarios such as small- and medium-
sized enterprises (SMEs), budget chain hotels, commercial stores, and primary and secondary schools.
You can use the EasyWeb or wireless access controller (WAC) to locally deploy and manage APs, or use the HUAWEI eKit
App & SNC platform to remotely manage and maintain APs. In this way, network projects can be handed over or managed
together, simplifying network O&M.
Feature Description
Wi-Fi 6 (802.11ax) Standard
? As the Wi-Fi 6 standard defined in IEEE 802.11, 802.11ax improves the user access capacity and bandwidth in high-
density access scenarios, reducing service latency and enhancing user experience.
? Multi-user multiple-input multiple-output (MU-MIMO) on both the 2.4 GHz and 5 GHz frequency bands, allowing an
AP to transmit data to and receive data from multiple stations (STAs) simultaneously and multiplying the utilization of
radio spectrum resources.
? 1024-quadrature amplitude modulation (QAM), improving data transmission efficiency by 25% compared with
802.11ac (256-QAM).
MU-MIMO
The AP supports MU-MIMO and supports a maximum of four spatial streams (two on the 2.4 GHz frequency band and two
on the 5 GHz frequency band). The MU-MIMO technology enables an AP to send data to multiple STAs simultaneously,
which doubles the radio spectrum resource usage, increases the number of access users and bandwidth, and improves user
experience in multi-user access scenarios.
High-Speed Dual-Band Access
The AP supports 160 MHz frequency bandwidth, which increases the number of available data subcarriers and expands
transmission channels. In addition, the AP adopts 1024-QAM and MU-MIMO to achieve a rate of up to 0.575 Gbps on the
2.4 GHz band and 2.4 Gbps on the 5 GHz band, meaning up to 2.975 Gbps for the device.
Smart Antenna
The dual-band smart antenna array technology and intelligent switchover algorithm enable the AP to intelligently sense the
application environment and access density, achieving accurate Wi-Fi coverage and interference suppression. They together
provide the optimal coverage direction and signal quality for each access STA, and offer seamless and smooth wireless
network experience to users.
Wired and Wireless Security Guarantee
To ensure data security, this AP integrates wired and wireless security functions and provides comprehensive security
protection.
Authentication and encryption for wireless access
The AP supports WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, and WPA/WPA2/WPA3-802.1X
authentication/encryption modes to ensure the security of wireless networks. The authentication mechanism is used to
authenticate user identities so that only authorized users can access network resources. The encryption mechanism is used
to encrypt data transmitted over wireless links to ensure that data can only be received and parsed by authorized users.
Make SME Network Easier and Smarter
Authentication and encryption for wired access
The AP access control mechanism ensures that only authorized users can access the AP. Control and provisioning of wireless
access point (CAPWAP) link protection and Datagram Transport Layer Security (DTLS) encryption provide security guarantee
and improve data transmission security between the AP and WAC.
Automatic Radio Calibration
Automatic radio calibration allows the AP to collect signal strength, channel, and other parameters of surrounding APs and
generate an AP topology according to the collected data. Based on interference from surrounding environments and their
loads, the AP automatically adjusts its transmit power and working channel to make the network operate at the optimal
performance. In this way, network reliability and user experience are improved.
Cloud Management
The AP supports cloud-based management. It provides various authentication functions, such as PSK and Portal
authentication, without the need of a WAC or an authentication server. This greatly simplifies networking and reduces
CAPEX. In addition, the AP can be deployed on the Huawei SNC platform to implement cloud-based network planning,
deployment, inspection, and O&M.
Deployment and O&M Through HUAWEI eKit App
The HUAWEI eKit App supports Wi-Fi-based deployment and barcode scanning–based deployment. After the deployment is
complete, you can perform more project maintenance operations on the HUAWEI eKit App.
Wi-Fi-based deployment
? Quick deployment mode: You can use a mobile phone to connect to the management Wi-Fi network of an AP to
deploy a network project. In this way, devices can automatically go onboarded and be remotely managed on the HUAWEI
eKit App.
Barcode scanning–based deployment
? Another deployment mode: Use a mobile phone to scan the serial number (SN) of the device chassis and synchronize
the device information to HUAWEI eKit to implement device onboarding management.
Product Features
Fat/Fit AP Mode
Item Description
WLAN features Compliance with IEEE 802.11ax and compatibility with IEEE 802.11a/b/g/n/ac/ac Wave 2
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD)
Beamforming
MU-MIMO
Compliance with 1024-QAM and compatibility with 256-QAM/64-QAM/16-QAM/8-QAM/QPSK/BPSK
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz, 80 MHz, and 160 MHz modes
Wi-Fi Multimedia (WMM)
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see
Country Code & Channel Compliance Table.
Separate service set identifier (SSID) hiding configuration for each AP, supporting Chinese SSIDs
Make SME Network Easier and Smarter
Item Description
Unscheduled automatic power save delivery (U-APSD)
Control and Provisioning of Wireless Access Points (CAPWAP) in Fit AP mode
Extended service set (ESS) in Fit AP mode
802.11k and 802.11v smart roaming
802.11r fast roaming
Network features Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode
SSID-based VLAN assignment
Management channel of the AP's uplink port in tagged or untagged mode
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
IPv4/IPv6 access control list (ACL)
Link layer discovery protocol (LLDP)
Uninterrupted service forwarding upon CAPWAP tunnel disconnection in Fit AP mode
Unified authentication on the WAC in Fit AP mode
Network address translation (NAT) in Fat AP mode
QoS features WMM parameter management for each radio
Queue mapping and scheduling
User-based bandwidth limiting
Adaptive bandwidth management (automatic bandwidth adjustment based on the user quantity and
radio environment) for user experience improvement
Airtime scheduling
Security features Open system authentication
WEP authentication and encryption using a 64-bit, 128-bit, 152-bit, or 192-bit encryption key
WPA2-PSK authentication and encryption
WPA2-802.1X authentication and encryption
WPA3-SAE authentication and encryption
WPA3-802.1X authentication and encryption
WPA-WPA2/WPA2-WPA3 hybrid authentication
WPA2-PPSK authentication and encryption in Fit AP mode
802.1X authentication, MAC address authentication, Portal authentication, etc.
DHCP snooping
Dynamic ARP inspection (DAI)
IP Source Guard (IPSG)
802.11w Protected Management Frames (PMF)
DTLS encryption
Maintenance
features
Unified management and maintenance on the WAC in Fit AP mode
Automatic login, automatic configuration loading, and plug-and-play (PnP) in Fit AP mode
Automatic batch upgrade in Fit AP mode
Telnet and STelnet using SSHv2
SFTP using SSHv2
Web system-based AP management and login through HTTP or HTTPS in Fat AP mode
Real-time configuration monitoring and fast fault locating using the NMS
SNMPv1/v2/v3 in Fat AP mode
Make SME Network Easier and Smarter
Item Description
System status alarm
Network Time Protocol (NTP) in Fat AP mode
Cloud Management Mode
Item Description
WLAN features Compliance with IEEE 802.11a/b/g/n/ac/ac Wave 2/ax
Maximum ratio combining (MRC)
Space time block code (STBC)
Cyclic delay diversity (CDD)/Cyclic shift diversity (CSD)
Beamforming
MU-MIMO
Compliance with 1024-QAM and compatibility with 256-QAM/64-QAM/16-QAM/8-QAM/QPSK/BPSK
802.11 dynamic frequency selection (DFS)
Short GI in 20 MHz, 40 MHz, 80MHz and 160 MHz modes
Priority mapping and scheduling in compliance with Wi-Fi Multimedia (WMM)
WLAN channel management and channel rate adjustment
NOTE
For detailed management channels, see
Country Code & Channel Compliance Table.
Automatic channel scanning and interference avoidance
Service set identifier (SSID) hiding
Unscheduled automatic power save delivery (U-APSD)
802.11k and 802.11v smart roaming
802.11r fast roaming
Network features Compliance with IEEE 802.3ab
Auto-negotiation of the rate and duplex mode
SSID-based VLAN assignment
DHCP client, obtaining IP addresses through DHCP
STA isolation in the same VLAN
Access control list (ACL)
Unified authentication on the cloud management platform
Network address translation (NAT)
QoS features Priority mapping and scheduling in compliance with WMM
WMM parameter management for each radio
Queue mapping and scheduling
User-based bandwidth limiting
Airtime scheduling
Security features Open system authentication
WEP authentication and encryption using a 64-bit, 128-bit, 152-bit, or 192-bit encryption key
WPA2-PSK authentication and encryption
WPA2-802.1X authentication and encryption
WPA3-SAE authentication and encryption
WPA3-802.1X authentication and encryption
WPA-WPA2/WPA2-WPA3 hybrid authentication
Make SME Network Easier and Smarter
Item Description
802.1X authentication, MAC address authentication, Portal authentication, etc.
DHCP snooping
Dynamic ARP inspection (DAI)
IP Source Guard (IPSG)
Maintenance
features
Unified management and maintenance on the cloud management platform
Batch upgrade
Telnet and STelnet using SSHv2
SFTP using SSHv2
Web-based NMS, and login through HTTP or HTTPS
Real-time configuration monitoring and fast fault locating using the NMS
System status alarm
Network Time Protocol (NTP)
Product Specifications
Item Description
Technical
specifications
Dimensions
(diameter x height)
?180 mm x 35 mm
Weight 0.45 kg

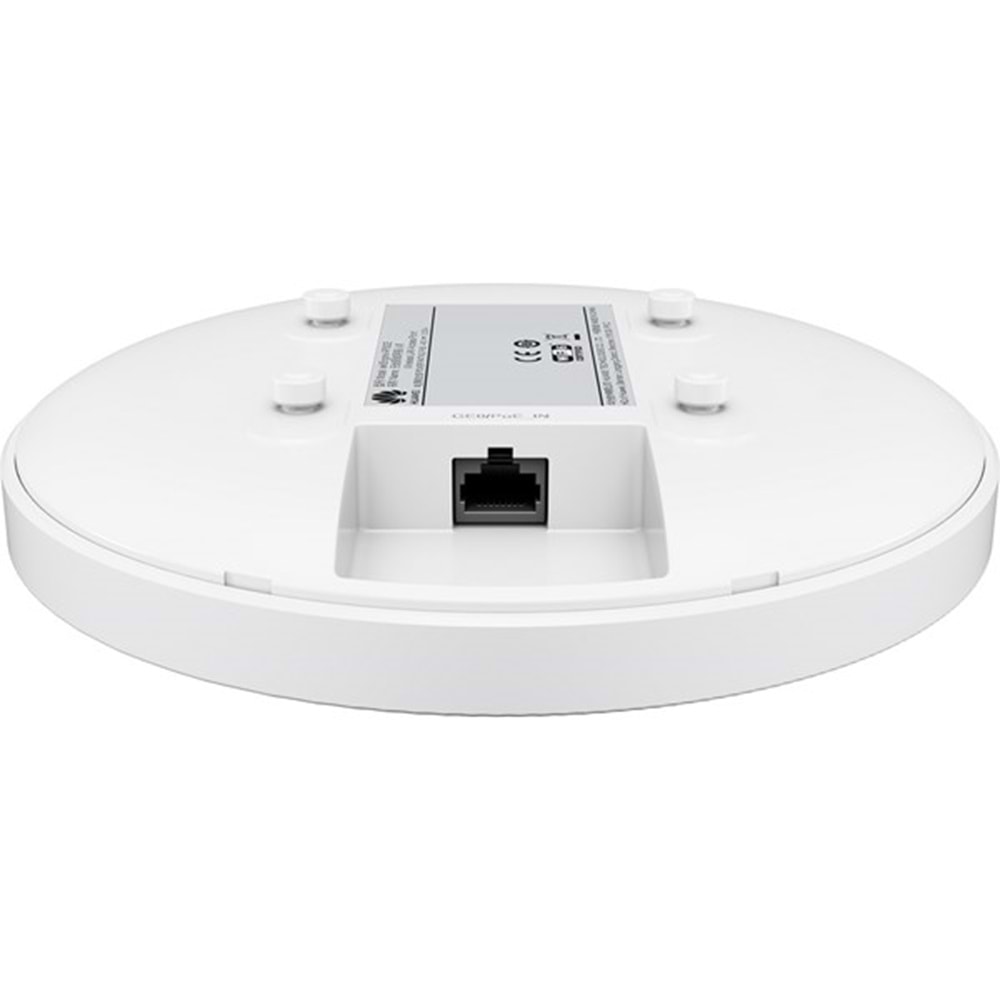

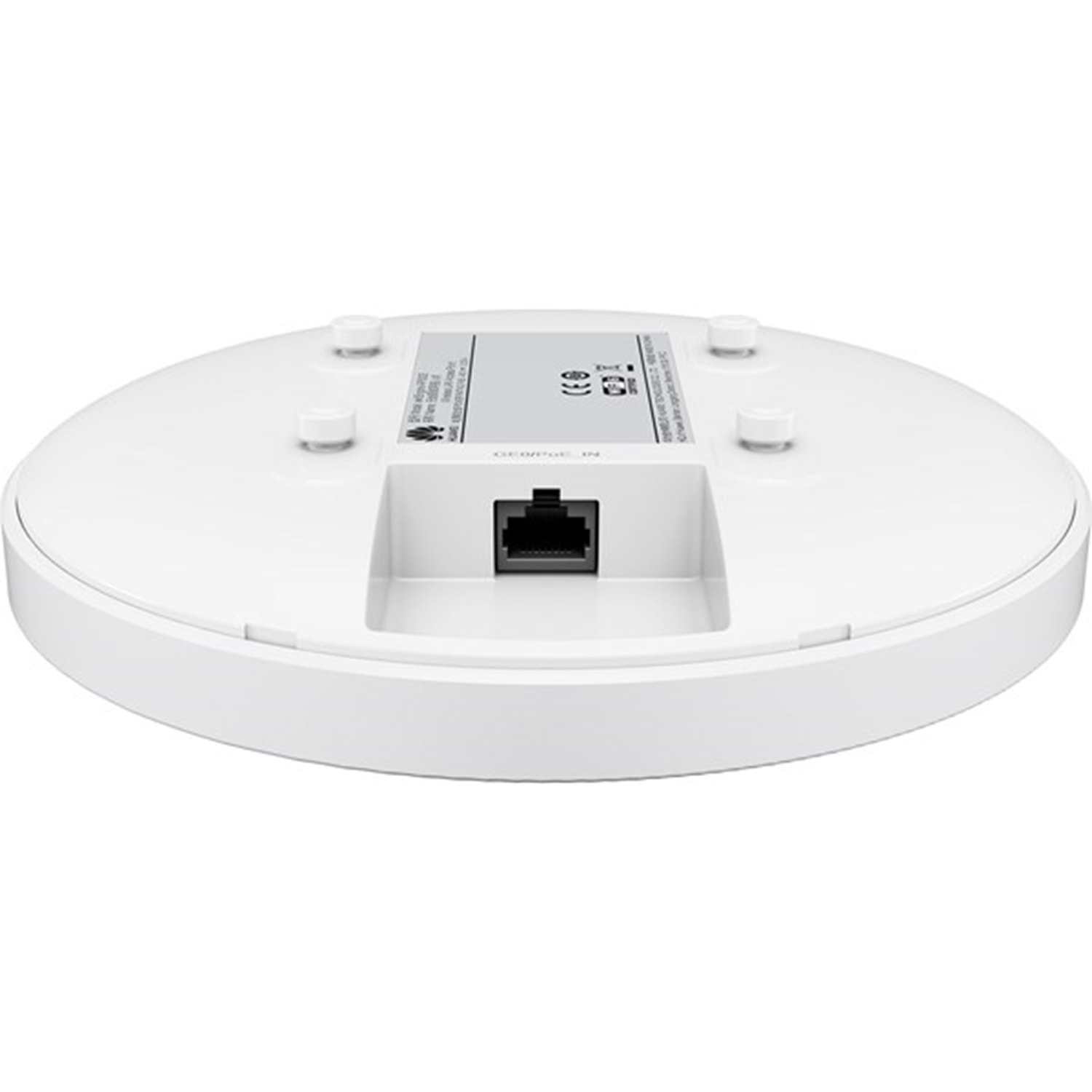

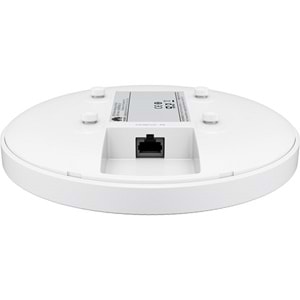

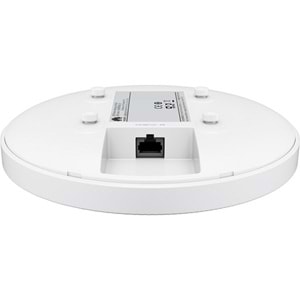

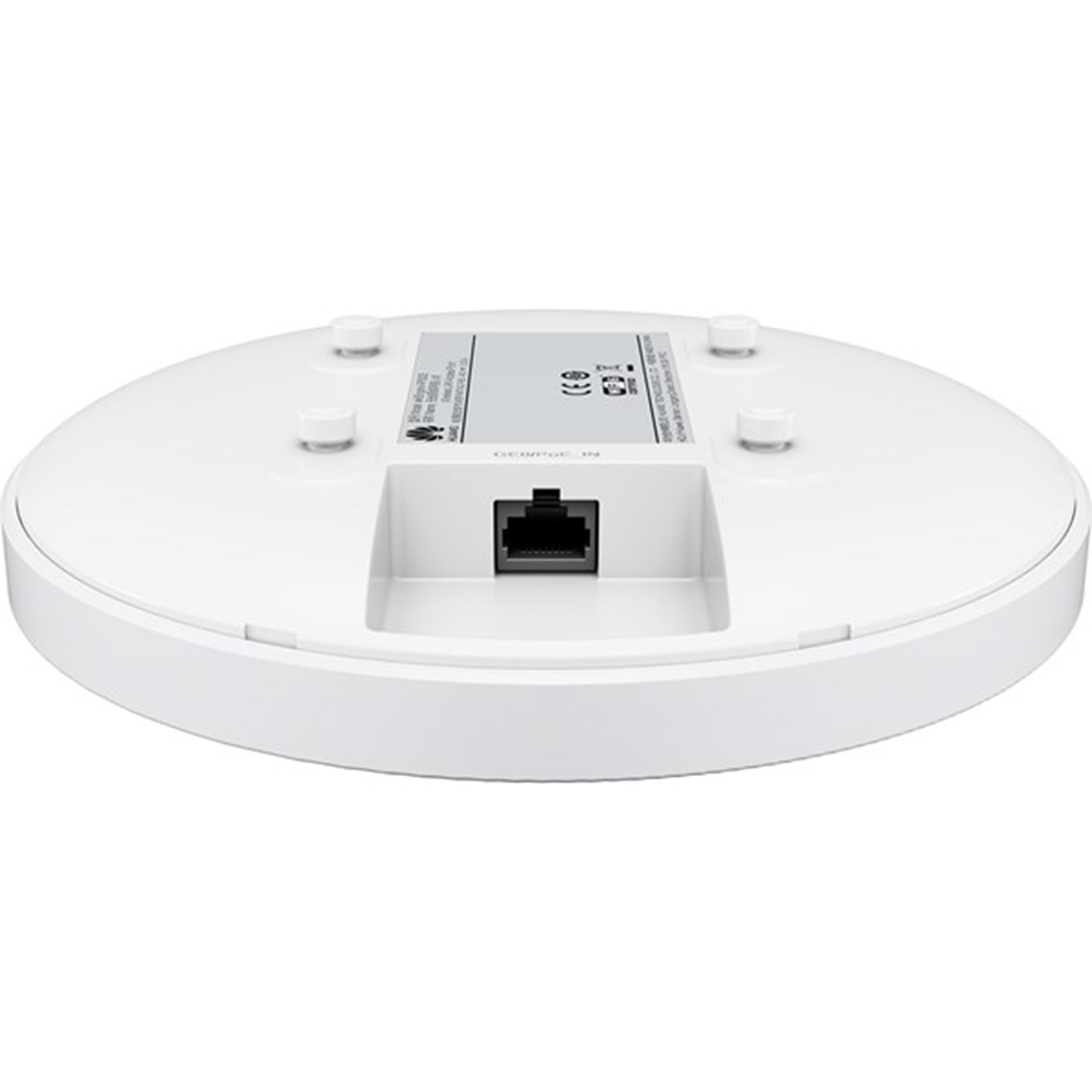

Port 1 x 10M/100M/GE electrical port
NOTE
The GE electrical port supports PoE IN.
LED indicator Indicates the power-on, startup, running, alarm, and fault states of the
system.
Wireless
Management
Yes
Power specifications Power input PoE power supply: in compliance with IEEE 802.3af
Maximum power
consumption
? 9.4 W
NOTE
The actual maximum power consumption depends on local laws and
regulations.
Environmental
specifications
Operating
temperature
0°C to 40°C (From 1800 m to 5000 m, the maximum temperature of the
device decreases by 1°C for every 300 m increase in altitude.)
Storage temperature –40°C to +70°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP41
Altitude –60 m to +5000 m
Atmospheric pressure 53 kPa to 106 kPa
Radio specifications Antenna type Built-in smart antennas
Antenna gain 2.4 GHz: 4 dBi
Make SME Network Easier and Smarter
Item Description
5 GHz: 5 dBi
NOTE
1. The preceding gain is the peak gain of a single antenna.
2. Equivalent antenna gain after all 2.4 GHz or 5 GHz antennas are
combined: 2 dBi for 2.4 GHz and 3 dBi for 5 GHz.
Maximum quantity of
SSIDs
16
Maximum transmit
power
2.4 GHz: 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
NOTE
The actual transmit power varies according to local laws and
regulations.
Power adjustment
increment
1 dBm
Standards Compliance
Item Description
Safety standards ? UL 62368-1
? EN 62368-1
? IEC 62368-1
? SCA 62368-1
? GB 4943.1
Radio standards ? ETSI EN 300 328 ? ETSI EN 301 893 ? AS/NZS 4268
EMC standards ? EN 301 489-1
? EN 301 489-17
? EN 60601-1-2
? EN 55024
? EN 55032
? EN 55035
? GB 9254
? GB 17625.1
? GB 17625.2
? AS/NZS CISPR32
? CISPR 24
? CISPR 32
? CISPR 35
? IEC/EN61000-4-2
? IEC/EN 61000-4-3
? IEC/EN 61000-4-4
? IEC/EN 61000-4-5
? IEC/EN61000-4-6
? ICES-003
IEEE standards ? IEEE 802.11a/b/g
? IEEE 802.11n
? IEEE 802.11ac
? IEEE 802.11ax
? IEEE 802.11h
? IEEE 802.11d
? IEEE 802.11e
? IEEE 802.11k
? IEEE 802.11v
? IEEE 802.11w
? IEEE 802.11r
Security
standards
? 802.11i, Wi-Fi Protected Access (WPA), WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WAPI
? 802.1X
? Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP), WEP, Open
? EAP Type(s)
EMF standards ? EN 62311 ? EN 50385
RoHS standards ? Directive 2002/95/EC &
2011/65/EU
? (EU) 2015/863
Make SME Network Easier and Smarter
Item Description
Reach standards ? Regulation 1907/2006/EC
WEEE standards ? Directive 2002/96/EC & 2012/19/EU
