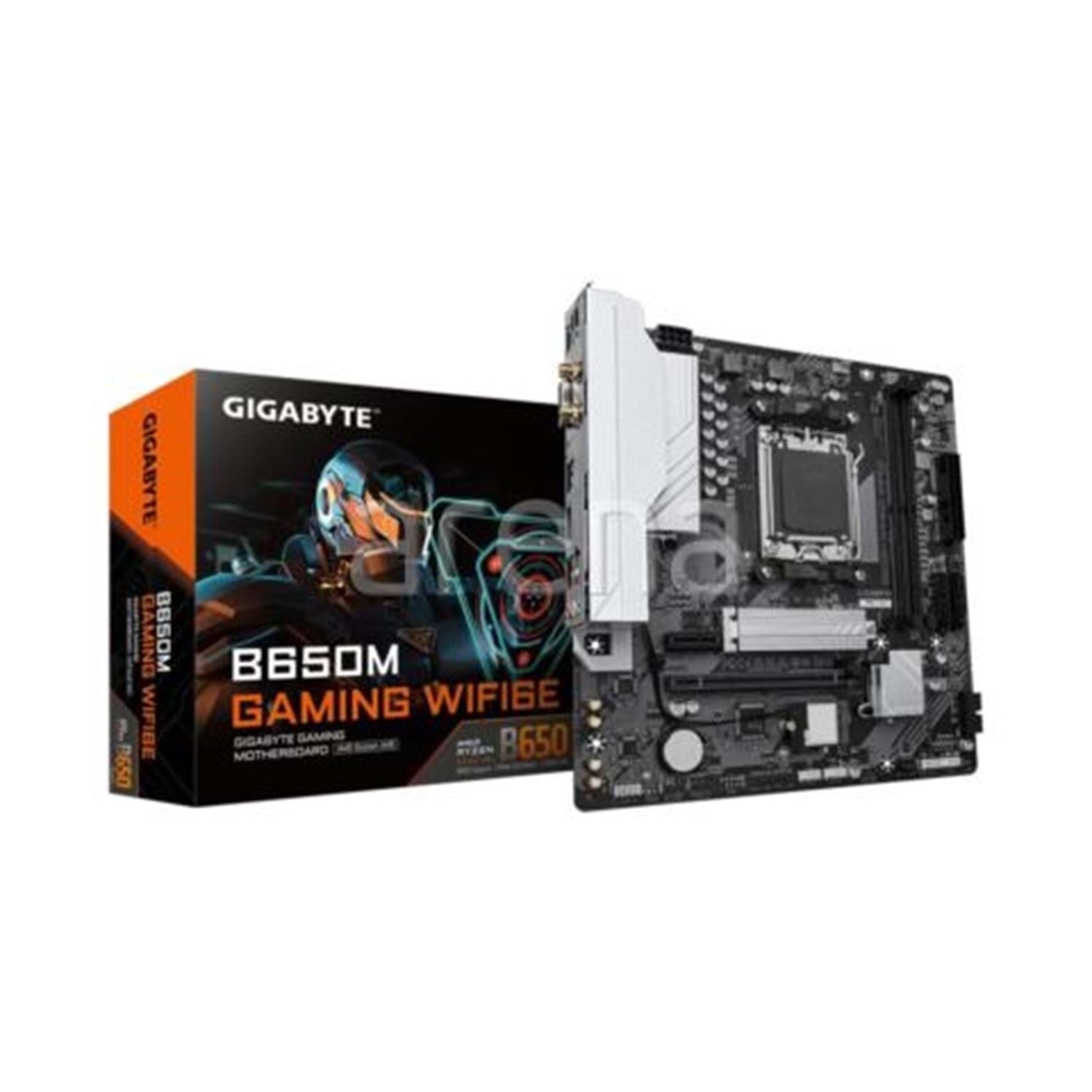

GIGABYTE B650M GAMING WIFI6E DDR5 HDMI DP PCIE 4.0 AM5 mATX6E

Teknik Bilgiler

İşlemci Soket Tipi	AM5
Chip Set	AMD B650
Ram Slot Sayısı	4 Adet
Max Ram Desteği	192GB
RAM Tipi	DDR5
Ram Frekans Hızı	6400 MHz,6200 MHz,6000 MHz,5600 MHz,5200 MHz,4800 MHz
İşlemci Desteği	Ryzen 7
Anakart Boyutu	ATX
USB 3.2	3 Adet
USB 3.1	2 Adet
USB 3.0	Yok
USB 2.0	6 Adet
PCI Express 3.0 x16	1 Adet
PCI Express x16	1 Adet
PCI Express x1	1 Adet
M.2 Slotu	1 Adet
Sata 6Gb/s	4 Adet
HDMI	Var
DP (Display Port)	Var
Lan Hızı	10/100/1000Mbps
Ses Chip Set	Realtek ALC887
Ses Kanal Sayısı	5.1 Kanal
Satış Garanti Süresi (ay)	24
EAN	4719331867942

Detaylı Bilgiler

Kategori	Özellik
CPU	AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s, 2 x DDR5 DIMM sockets supporting up to 128 GB, Dual channel, Non-ECC support, AMD EXPO™ & XMP support
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x D-Sub port (1920x1200@60Hz), 1 x HDMI port (4096x2160@60Hz), HDMI 2.1 & HDCP 2.3 support
Audio	Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication	Realtek® Wi-Fi 6E RTL8852CE, WIFI a/b/g/n/ac/ax 2.4/5/6 GHz, BLUETOOTH 5.3, 11ax 160MHz support
Expansion Slots	1 x PCIe x16 slot (CPU) PCIe 4.0 x16/x8/x4 mode, 1 x PCIe x1 slot (Chipset, PCIe 3.0 x1)
Storage Interface	1 x M.2 (CPU, Socket 3, M key, type 2580/2280), 4 x SATA 6Gb/s connectors, RAID 0/1/10 for NVMe & SATA
USB	CPU: 2 x USB 3.2 Gen 1 ports, 1 x USB 2.0/1.1 port (back panel) Chipset: 2 x USB 3.2 Gen 1 internal, 5 x USB 2.0/1.1 ports (3 back, 2 internal), 2 x USB 2.0/1.1 internal (Hub)
Internal I/O Connectors	1 x 24-pin ATX main power, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 2 x addressable LED headers, 1 x RGB LED header, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header, 1 x Clear CMOS jumper
Back Panel Connectors	4 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x D-Sub, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1, 1 x HDMI, 1 x RJ-45, 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS	1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.0cm x 22.5cm
