TL-WA3001

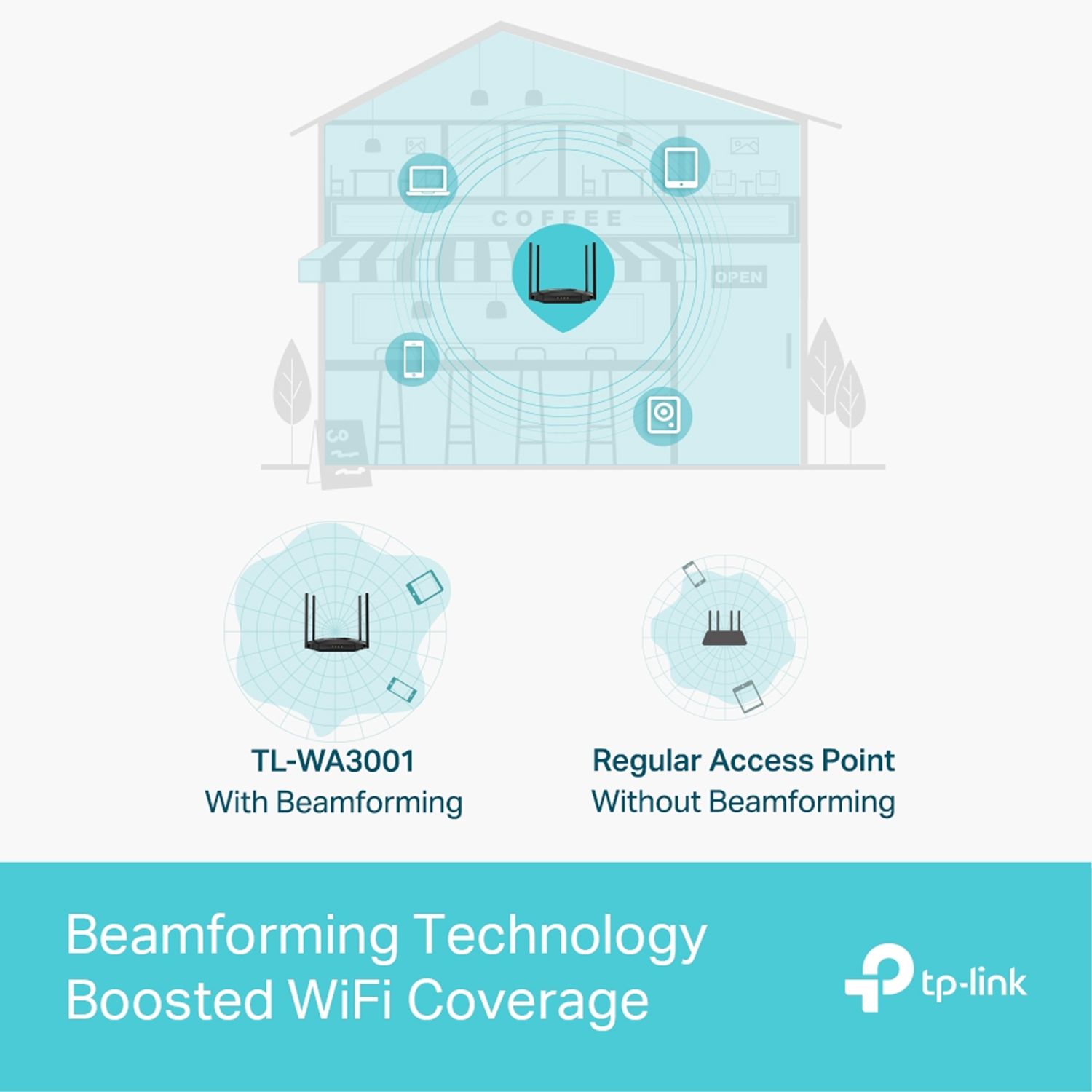

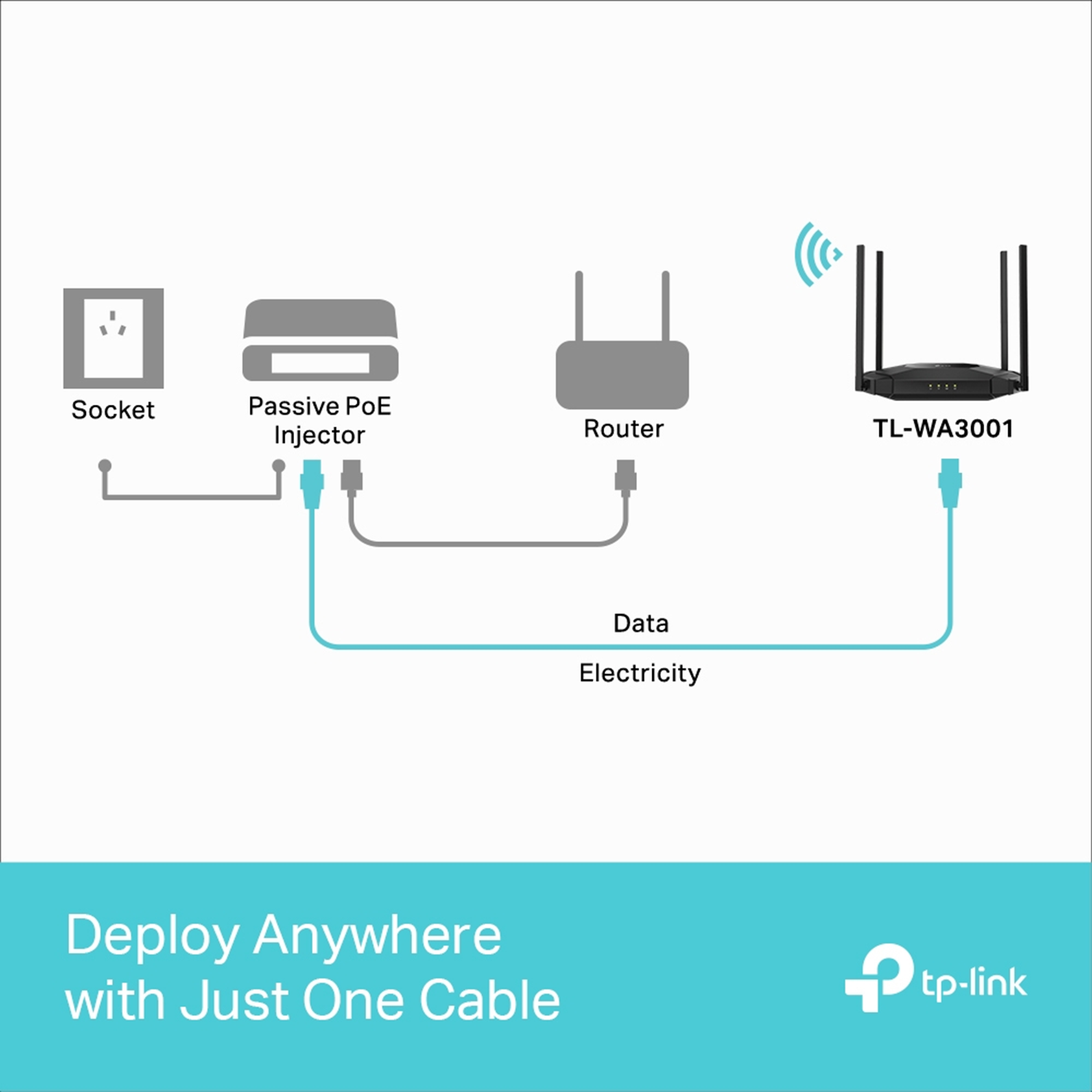

AX3000 Gigabit Wi-Fi 6 Access Point 4K Yayın İçin Gigabit WiFi 6 Hızı – Daha hızlı gezinme, yayın ve indirme için aynı anda 3000 Mbps Çift Bant WiFi. Esnek Kurulum – Elektrik gücü ve veriyi aynı anda taşımak için Pasif PoE desteği. Çoklu Modlar – Tüm ağ ihtiyaçlarını karşılamak için Erişim Noktası, Menzil Genişletici, Multi-SSID ve İstemci modlarını destekler. Geliştirilmiş Kapsama – Beamforming teknolojisiyle donatılmış dört sabit anten, Wi-Fi sinyallerini genişletir ve yoğunlaştırır. Captive Portal – Daha yüksek güvenlik ve pazarlama için tasarlanmış bir portal sayfası sunar.
DONANIM ÖZELLİKLERİ Arabirim 1 Gigabit Port (Supports Passive PoE) Buton Power On/Off Button, WPS Button, Reset Button Harici Güç Kaynağı 48V/0.5A Boyutlar ( W X D X H ) 9.4×6.5×1.7 in (240×165×43.6mm) Anten 4 Fixed High Performance Antennas
KABLOSUZ ÖZELLİKLERİ Kablosuz Standartlar IEEE802.11b/g/n/ax 2.4 GHz, IEEE 802.11a/n/ac/ax 5 GHz Frekans 2.4 GHz and 5 GHz Bağlantı Hızı 2402 Mbps at 5 GHz, 574 Mbps at 2.4 GHz Alıcı Hassasiyeti 5 GHz: 11ax HE20 MCS0:-97dBm, 11ac VHT20 MCS9:-73dBm, 11ax HE20 MCS11:-67dBm 11ax HE40 MCS0:-94dBm, 11ac VHT40 MCS9:-70dBm, 11ax HE40 MCS11:-63dBm 11ax HE80 MCS0:-91dBm, 11ac VHT80 MCS9:-66dBm, 11ax HE80 MCS11:-60dBm 11ac VHT160 MCS9:-63dBm, 11ax HE160 MCS11:-58dBm 2.4 GHz: 11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS8:-73dBm, 11ax HE20 MCS11:-65dBm 11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS9:-69dBm, 11ax HE40 MCS11:-62dBm Kablosuz Fonksiyonlar Enable/Disable Wireless Radio, WMM, Wireless Statistics, Access Control Kablosuz Güvenlik WPA, WPA2, WPA3, WPA/WPA2-Enterprise encryptions İletim Gücü FCC: <23dBm(2.4GHz), <22dBm(5GHz)
YAZILIM ÖZELLİKLERİ Quality of Service WMM Çalışma Modları Access Point, Range Extender, Client, Multi-SSID Sistem Araçları SNMP, Ping Watchdog DHCP Server, DHCP Client List Protokoller IPv4, IPv6
OTHER Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCPDNS DNS • Port: 53 Protocol: TCP & UDPDHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDPApp management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

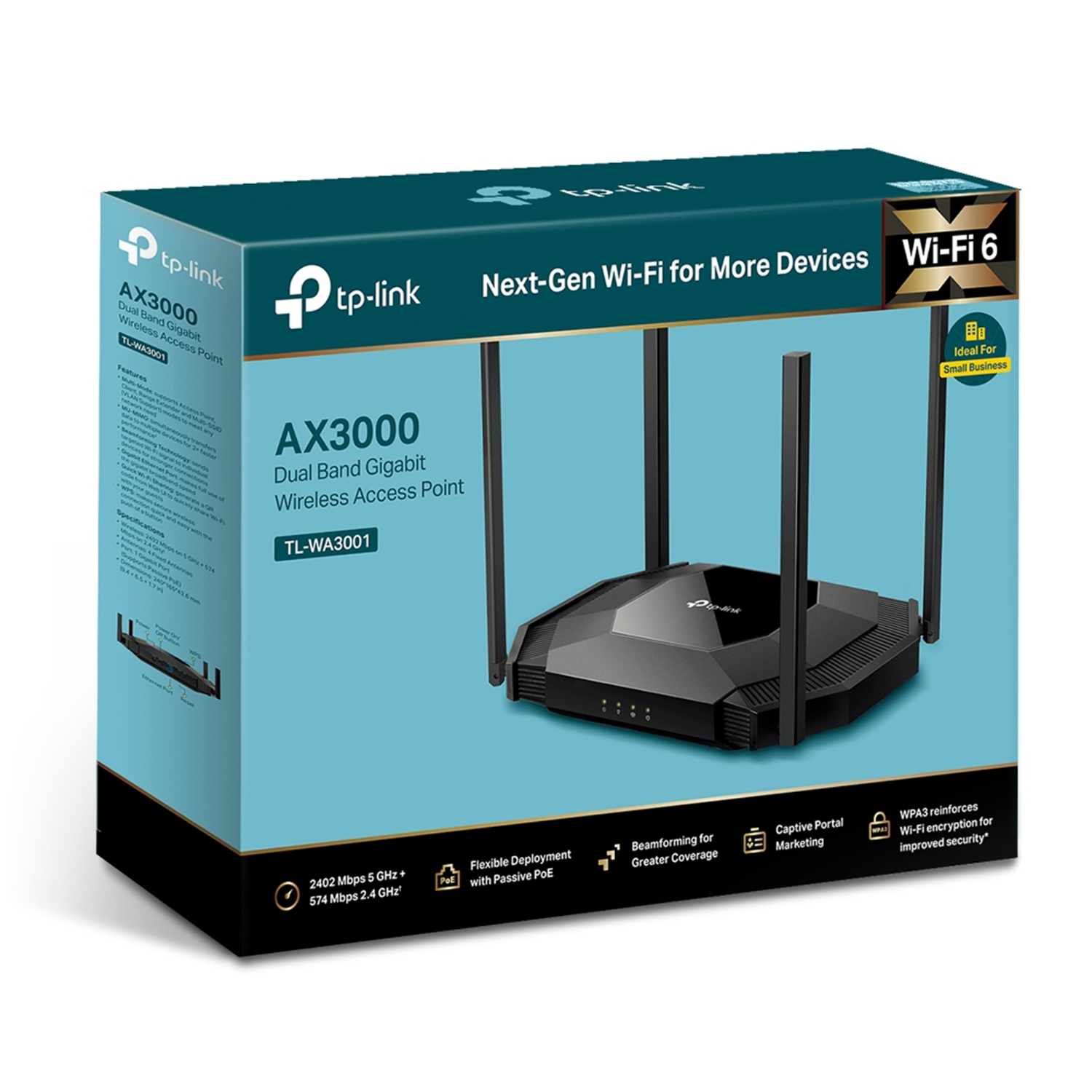

DİĞERLERİ Sertifika FCC, RoHS Paket İçeriği Wireless Access Point TL-WA3001 Power Adapter RJ45 Ethernet Cable Quick Installation Guide PoE Power Injector Sistem Gereksinimleri Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Ortam Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) Operating Humidity: 10%~90% non-condensing
Ek sürüm bilgisi için lütfen destek sayfasına gidin.
