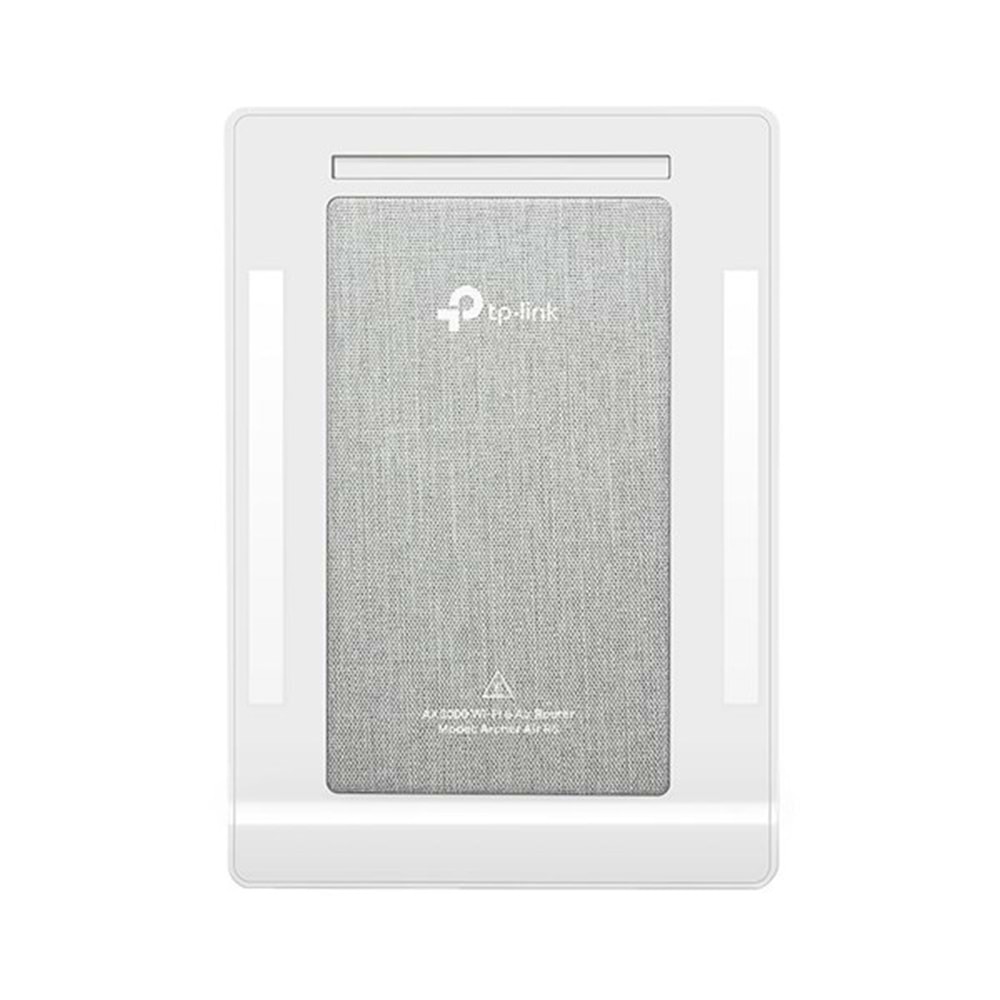

TP-LINK ARCHER AIR R5 X95 AX3000 Duvar Tipi Access Point

Archer Air R5

AX3000 Çift Bantlı Wi-Fi 6 Air Router

Gelecek Nesil Gigabit Wi-Fi 6 Hızı— 5 GHz bandında 2402 Mbps ve 2.4 GHz bandında 574 Mbps, daha akıcı yayınlar ve daha hızlı indirmeler sağlar. Bu, yüksek bant genişliği gerektiren uygulamalar için idealdir.

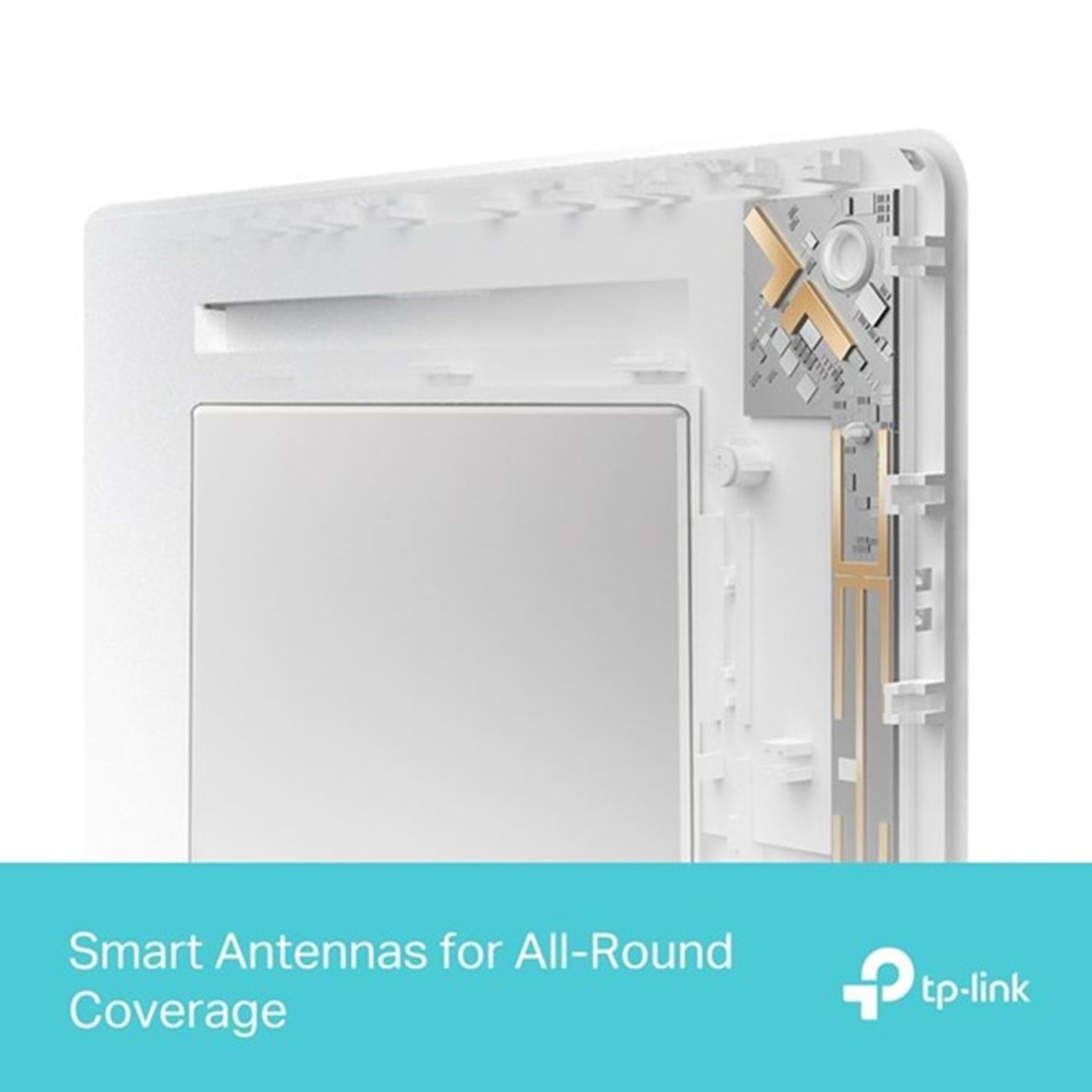

Akıllı Antenler – Cihazların konumlarını otomatik olarak algılayarak anten yönlendirmesini ayarlayan akıllı algoritmalar kullanır. Bu sayede, her zaman stabil ve güçlü bir sinyal alırsınız.
Son Derece Düşük Gecikme— Daha hızlı tepki süreleri sayesinde oyun oynamak ve video görüşmeleri yapmak daha keyifli hale gelir.
TP-Link HomeShield - En son siber tehditlere karşı gelişmiş güvenlik sağlar. Bu, ev ağınızı korumak için ek bir katman sunar.
EasyMesh Uyumlu - EasyMesh uyumlu yönlendiricilerle birlikte çalışarak evinizde kapsamlı bir mesh ağı oluşturmanızı sağlar. Bu, sinyal gücünü artırır ve kapsama alanını genişletir.

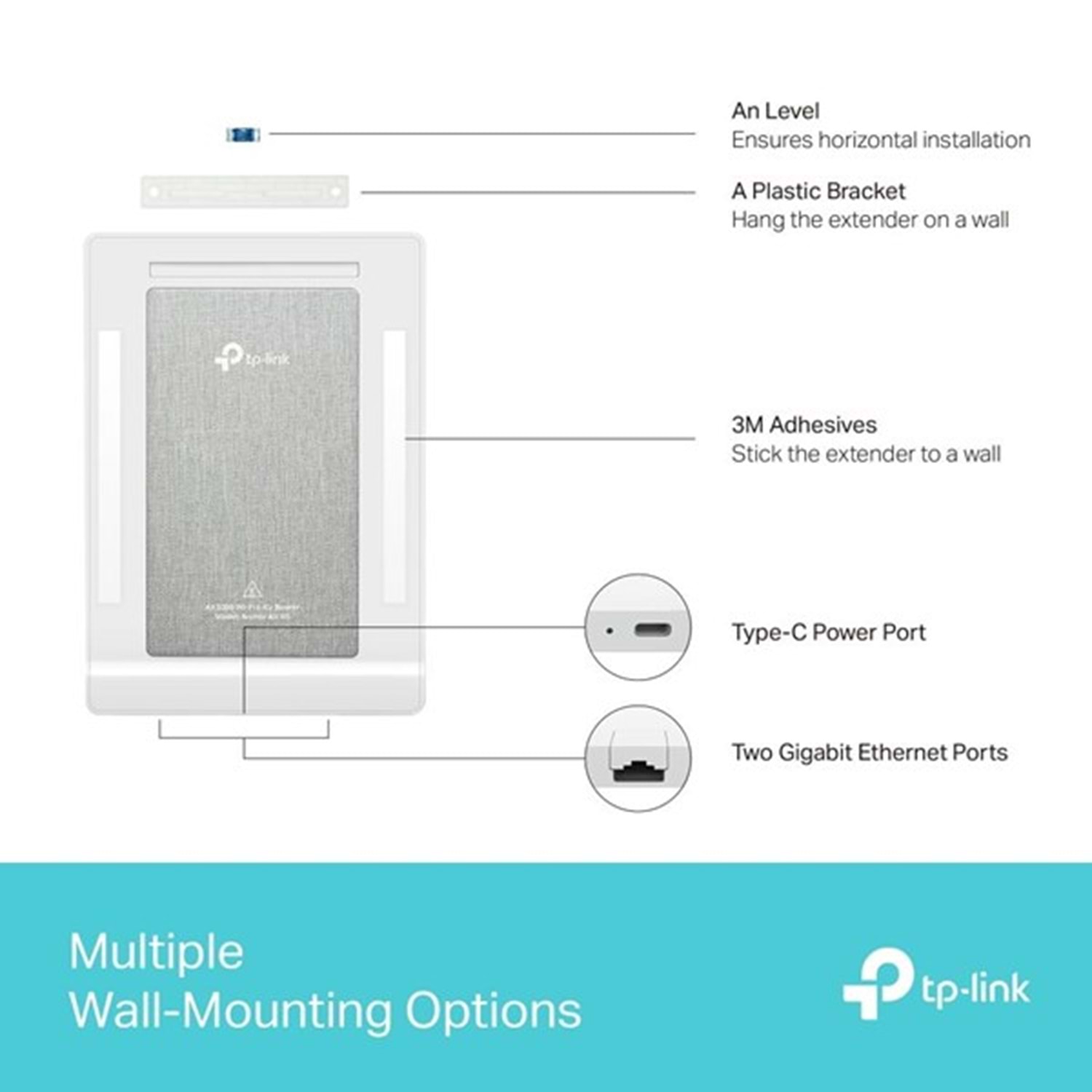

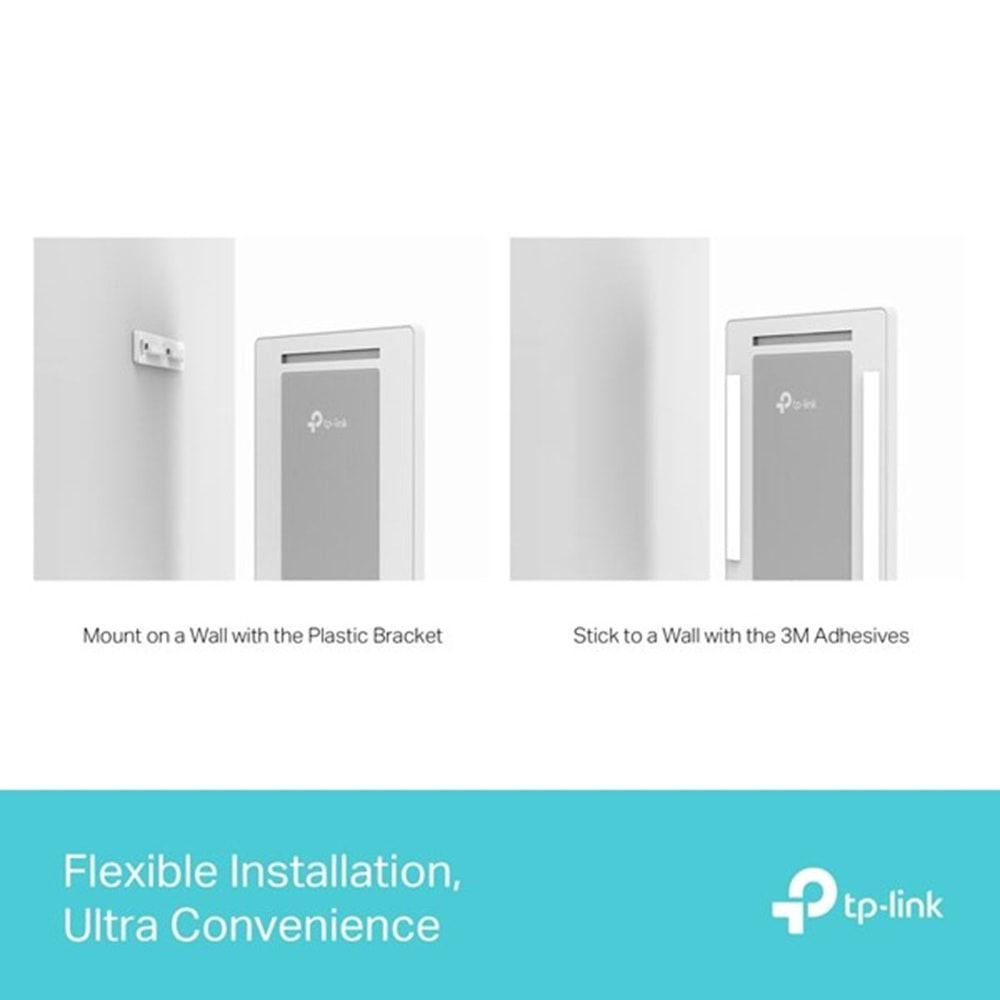

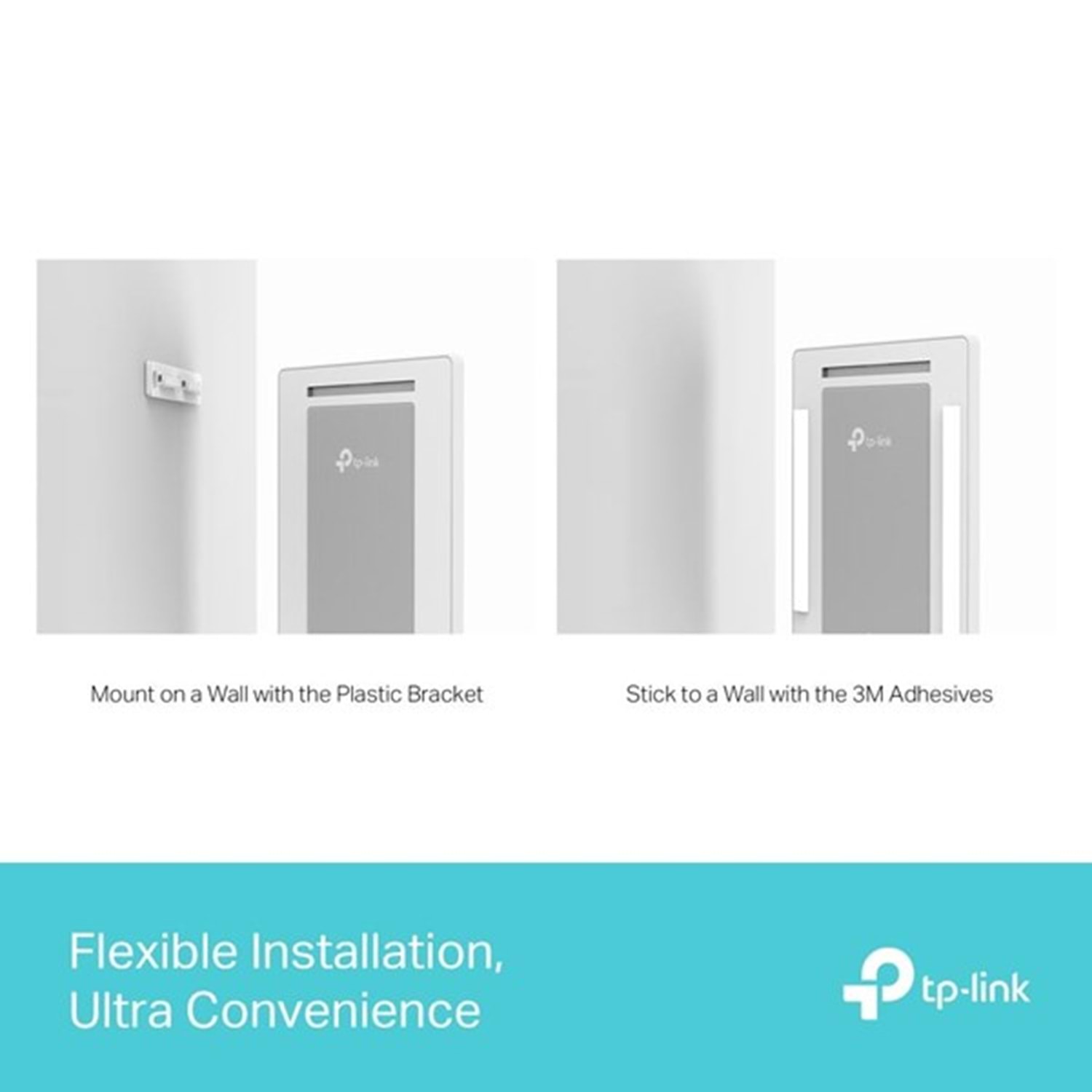

Esnek Kurulum – 3M yapıştırıcılar ve ekli plastik braket ile duvara yapıştırmak veya monte etmek kolaydır. Bu, cihazı istediğiniz yere kolayca yerleştirmenize olanak tanır.

KABLOSUZ
Standards and Protocols	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom HousesMultiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Kapasitesi	HighDual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode AP Mode

GÜVENLİK
Network Security	HomeShield SecurityReal-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	PPTP ServerN OpenVPN ServerN
WiFi Encryption	WPA/WPA2 WPA3 WPA/WPA2-PSK

DONANIM ÖZELLİKLERİ
Input Power	12V/2A

HARDWARE
Ethernet Ports	1× Gigabit WAN Port 1× Gigabit LAN Port
Butonlar	WPS Button Reset Button

SOFTWARE
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
EasyMesh	Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More about EasyMesh>
Parental Controls	HomeShield Parental ControlsCustom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPPoE + Dynamic IP PPPoE + Static IP L2TP + Dynamic IP L2TP + Static IP PPTP + Dynamic IP PPTP + Static IP
Quality of Service	QoS by Device
Cloud Service	FOTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Fowarding Port Triggering DMZ UPnP
IPTV	Profile Bridge Custom Allowed range of VLAN ID
DHCP	DHCP Server Address Reservation DHCP Client List
DDNS	TP-Link NO-IP DynDNS
Management Features	Tether App Webpage Check Web Emulator>

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40~60? Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90%

TEST DATA
WiFi Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity	5GHz-band1: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 5GHz-band2: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 5GHz-band3: 11a 6Mbps:-97dBm 11a 54Mbps:-78dBm 11ac HT20 MCS8:-74dBm 11ac HT40 MCS9:-69dBm 11ac HT80 MCS9:-65dBm 11ax HE20 MCS0: -97dBm 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -94dBm 11ax HE40 MCS11: -63dBm 11ax HE80 MCS0: -91dBm 11ax HE80 MCS11: -60dBm 11ax HE160 MCS0: -88dBm 11ax HE160 MCS11: -58dBm 2.4GHz: 11g 6Mbps:-96dBm 11g 54Mbps:-78dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-72dBm 11ax HE20 MCS0: -95dBm 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm 11ax HE40 MCS11: -62dBm

TEST DATA

WiFi Transmission Power

CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity

5GHz-band1:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
5GHz-band2:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
5GHz-band3:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-72dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm

PHYSICAL
Dimensions (W×D×H)	8.3 × 5.5 × 0.4 in (210 × 140 × 10.8 mm)
Package Content	Wireless Router Archer Air R5 Quick Installation Guide Power Adapter Plastic Bracket Gigabit Network Cable Installation Accessories
