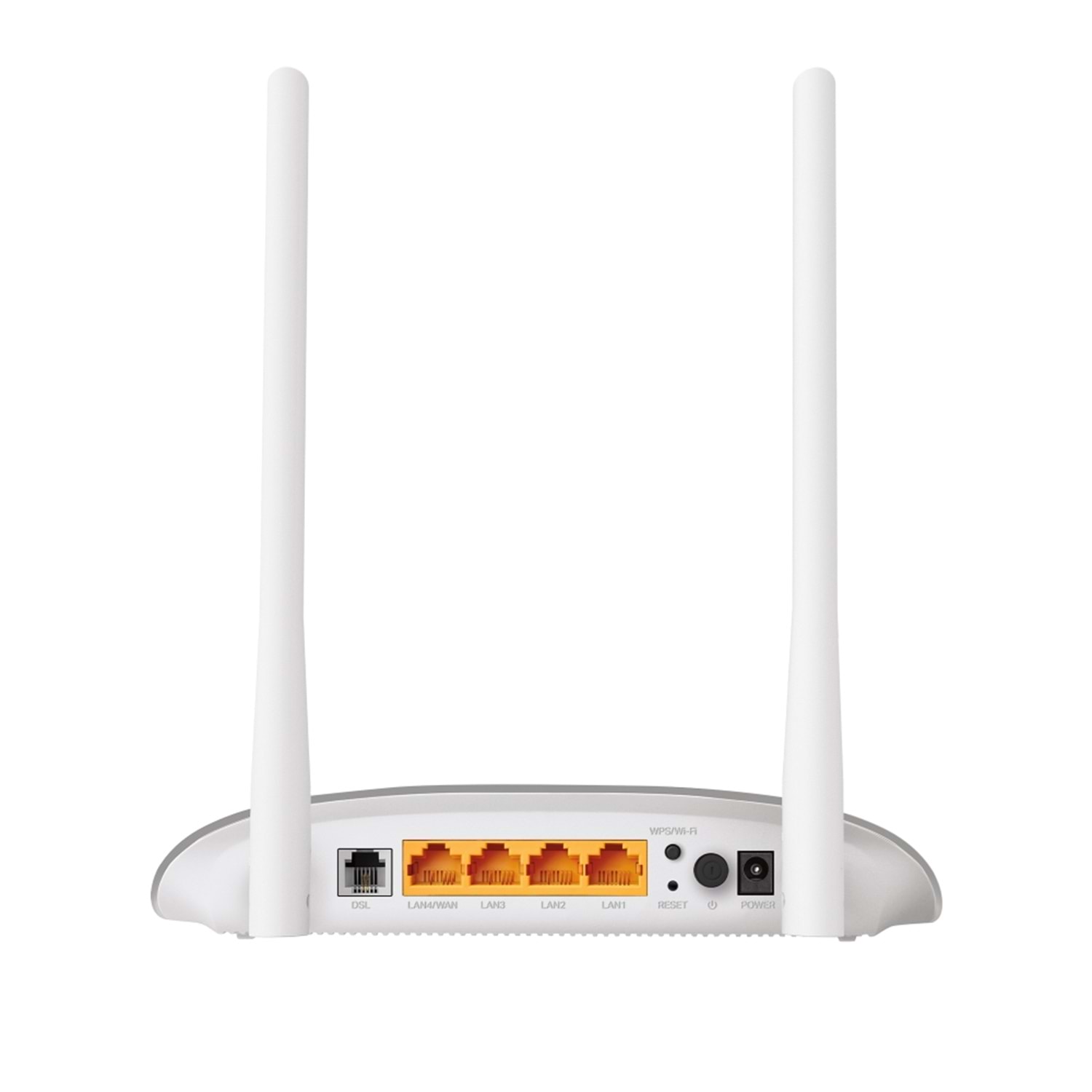

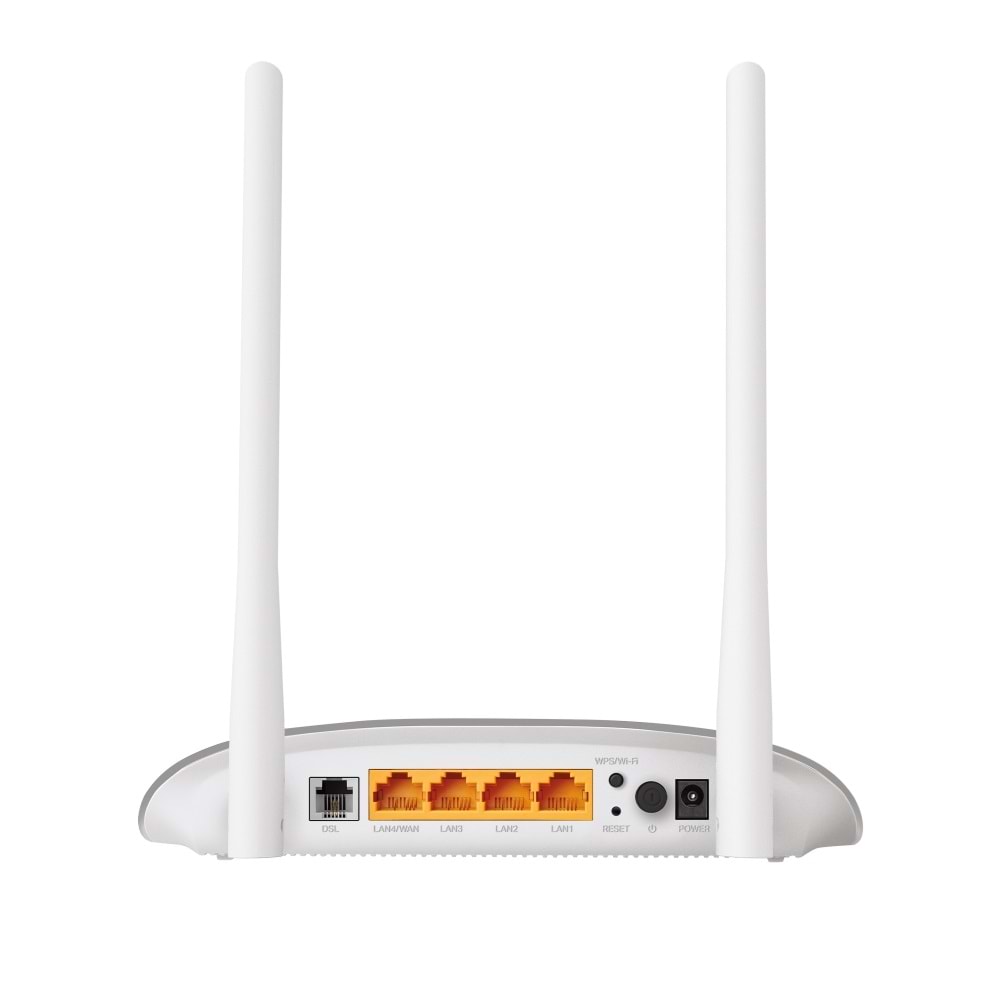

DONANIM ÖZELLİKLERİ Arabirim 1× 10/100 Mbps LAN/WAN Port 3× 10/100 Mbps LAN ports 1× RJ11 port Buton WPS/Wi-Fi Button Reset Button Power On/Off Button Harici Güç Kaynağı 9V/0.85A IEEE Standartları IEEE 802.3, 802.3u VDSL2 Standartları ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) ADSL Standartları Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 ADSL2 Standartları ITU-T G.992.3 (G.DMT.bis) ADSL2+ Standartları ITU-T G.992.5 Boyutlar ( W X D X H ) 7.1 × 4.9 × 1.4 in (181.6 × 125.7 × 36.2 mm) Anten 2 × 5dBi Fixed Omni-Directional Antennas KABLOSUZ ÖZELLİKLERİ Kablosuz Standartlar IEEE 802.11b/g/n 2.4GHz Kablosuz Hızı 300 Mbps at 2.4 GHz Frekans 2.400 - 2.4835 GHz Kablosuz Fonksiyonlar Enable/Disable Wireless Radio, WMM, Wireless Statistics Kablosuz Güvenlik Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions İletim Gücü <20dBm(EIRP) YAZILIM ÖZELLİKLERİ Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p Gelişmiş Özellikler Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP Güvenlik NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death Yönetim Web Based Configuration(HTTP), Remote management, Telnet management, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools Port Yönlendirme Virtual Server, DMZ, ACL(Access Control List) VPN Pass-Through PPTP, L2TP ATM/PPP Protokolleri ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs DİĞERLERİ Sertifika CE, RoHS Paket İçeriği DSL Modem Router TD-W9950 External DSL Splitter RJ11 DSL Cable RJ45 Ethernet Cable Quick Installation Guide Power Adapter Sistem Gereksinimleri Windows 11/10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system Ortam Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40? ~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
